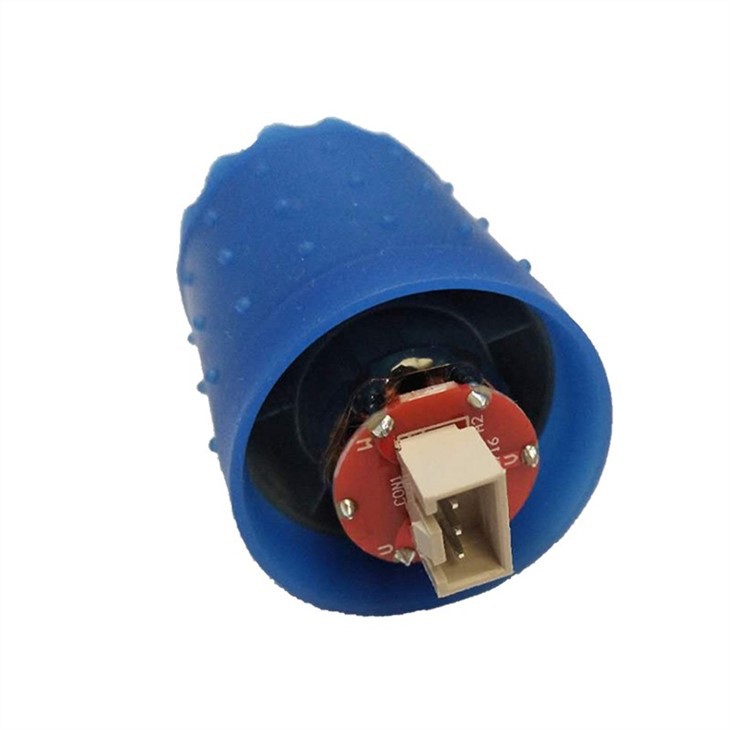

Low Vibration Brushless Motor For Hair Dryer

LS1713 is our new product,designed and come into the market in begining of 2020. It has a wide range of voltage,can be used on  every conner of the world.Motor self and controller are made of a complete 1713 brushless motor,widely used on hair dryer and be popular by home and overseas customers due to its low size with 28mm*29.2mm .

Basic information

Model:LS1713

Phase:Three phase

Voltage:100V/11V/12V/230V

Frequency:50Hz/60Hz

MOQ:1000pcs

Payment terms:T/T in advance

Price terms:FOB/CNF/CIF

Shipping port:Shenzhen ,port

Specification

Operation conditions

● Rated voltage:DC310V

● Operating condition: Temp.:-10℃~+40℃

● Operationg relative Humidity:5~60%

● Storage condition: Temp.:-20℃~+40℃

● Storage relative Humidity:5~60%

● Direction of rotation:CCW

Electrical characteristics

● No load current:To Be Determined A

● No load speed:To Be Determined RPM

● Load current:≦0.56Max A

● Load speed:108000±5%RPM

● Load:Fan blade

Application

Packaging

1.8pcs per layer,total 5layers a carton,40pcs per carton

2.Net weight of carton:6kg

3.Gross weight of carton:6.835kg

Service

1. Before sale service

• Your any enquiry will get reply within 24 hours.

• Company information,wesite,product catalog can be provided for your reference.

• Correct quotation are pleased to offer if need.




 2.After sale service

• We will be responsible for the defects already shipped if caused by our product quality.

• We will update the motor performance according to the cusotmer requirements.
