LSHL 4409 is a one model of Brushless DC motor ,widely used for hair dryer with 100-127V/220-240V 50-60Hz.Due to the excellet performance and superior material,the cost is higher than AC universal motor.It is accepted and popular in high end market and high consumer group.
Basic information
Product type:LSHL4409 Voltage:230V
Frequency:50Hz Target market:high-end market
Speed: 21000RPM Size:44mm*9mm
Shaft:4.5mm Fan:can be customized
Carton:16pcs/ctn MOQ:2000pcs

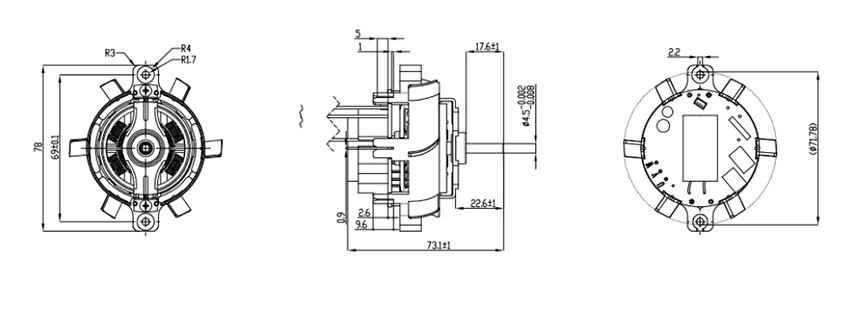

Motor drawing
Connecting drawing
| Item | Switch gear position | Motor speed/RPM | Motor Power |
| 1 | Speed of low-grade | 16000RPM | ≤145W |
| 2 | Speed of high-grade | 21000RPM | ≤170W |

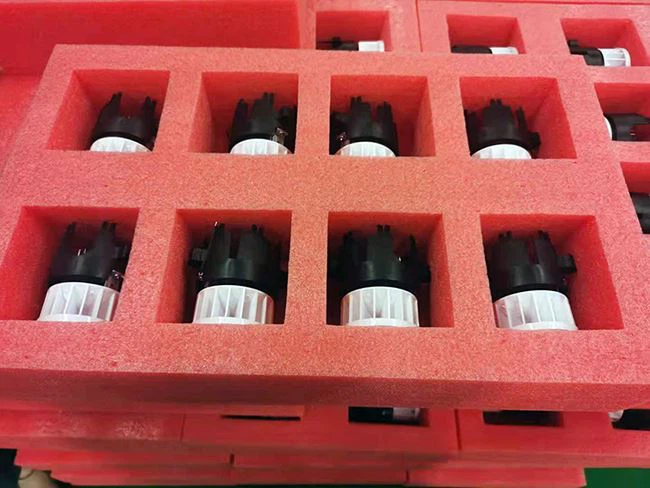

Packing
Carton:Standard export box
8pcs per layer,2layers per carton,total 16pcs a carton
Carton size:46.6*29.6*19.5cm
Weight of a motor:0.15KG
Net weight of a carton:2.4KG
Gross weight of a carton:3.2KG
