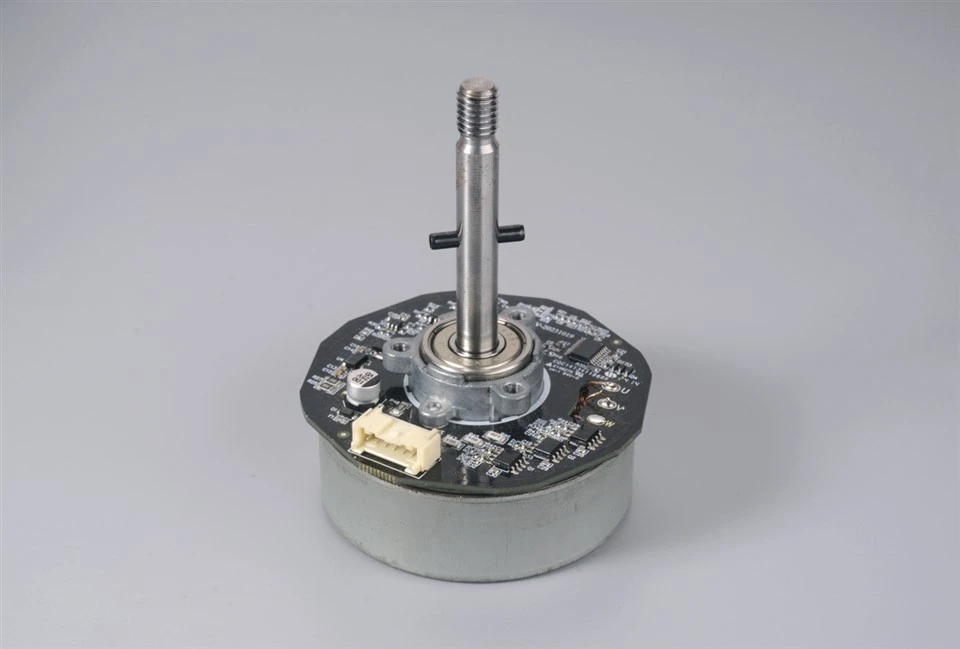

Products Description
1. Product drawing
2. Standard Operating Condition
|
2.1 Rated Voltage 额定电压：
|
24V DC
|
|
2.2 Voltage Range 电压使⽤范围：
|
22.8-25.2V DC
|
|
2.3 Rotation Direction 回转⽅向：
|
CW/CCW as viewed from output shaft
从输出轴⽅向看顺时针/逆时针
|
|
2.4 Operating Position 使⽤姿势：
|
The output shaft can be in any direction
输出轴可以在任何位置
|
|
2.5 Standard Operating temperature 标准使⽤温度：
|
25℃
|
|
2.6 Operating Temperature Range 使⽤温度范围：
|
-20~80℃
|
|
2.7 Standard Operating Humidity 标准使⽤湿度：
|
65%
|
|
2.8 Operating Humidity Range 使⽤湿度范围：
|
RH0~90%
|
|
2.9 Storage Temperature 保存温度范围：
|
-20~60℃
|
|
2.10 Insulation Level 绝缘等级：
|
Class B
|
3. Electrical Characteristic
|
3.1 No Load Speed 空载转速：
|
1800±20rpm
|
|
3.2 No Load Current 空载电流：
|
0.3A Max |
| 3.3 Rated Load 额定负载： | 105 m.Nm (REF) |
| 3.4 Rated Load speed 额定负载转速： | 1800±20 rpm (Constant rotational speed) |
| 3.5 Rated Load Current 额定负载电流： | 2.5 A Max |
| 3.6 Stall Current 堵转电流： | 6A Min |
| 3.7 Dielectric Strength 耐⾼压： | 500V AC for 1 Sec, 5mA Max |
| 3.8 Acoustic Noise 噪⾳： |
45dB Max, Background noise 36dBA, at no load and put it on sponge, it is operated at rated voltage, to be measured at a distance of 50cm from motor output surface.
45dB 最⼤,背景噪⾳ 36dBA,将电机置于隔⾳海绵上,加额定电压,电机空载,在距离电机输出端⾯ 50cm 距离测量
|
4. Mechanical Characteristic
|
4.1 Appearance 外观：
|
No defect including oil stained, dirty, cracks, lack of material etc. in appearance. 部件表⽆油污,污物,裂痕等不良现象
|
| 4.2 Dimensions 尺⼨： | See Drawing ⻅外形图 |
| 4.3 Weight 重量： | 300 ±15g |
| 4.4 Number of Poles 极数： | 14 极 |
| 4.5 Number of Phase 相数： | 3 相 |
| 4.6 Driving Method 驱动⽅式： | Sensorless Drive ⽆感驱动 |
5. Life Test
|
5.1 Test Voltage 测试电压：
|
24V DC |
| 5.2 Test Load 测试负载： | Air Purifier Complete Unit 空净整机 |
| 5.3 Load performance 负载性能： | Maximum Gear Test 最⼤档测试 |
| 5.4 Test Ambient Condition 测试环境： | -20~120℃,Humidity 20%~75% |
| 5.5 Test Cycle 测试循环： | Run Continuously |
| 5.6 Life Time 测试时间： |
15000H Min
|
