AC Universal Motor For Hair dryer

Basic information

Motor model:LF5410                                     Voltage:AC220V

Frequency:50Hz                                             Application:Hair dryer

Diameter of Stator lamination:54mm             Thickness of Stator lamination:10mm

Performance:Standard                                    Special assembly:With fan

Material :Pure copper winding                        HS code:8501400000

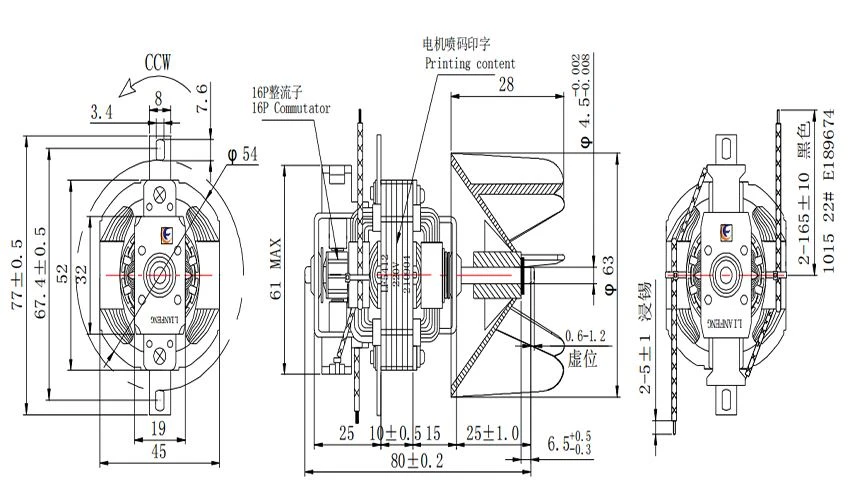

Drawing of 5410 AC motor

Performance details

• Load current:0.65A

• Load speed:11900R/min

• Load power:147W

• High pot testing:1800VAC/1SEC/0.5mA

• Direction of Rotation:CCW

• Vibration:10mm/s Max

Hair dryer motor size

• Total motor length:80±0.2mm

• Shaft diameter:4.5mm

• Shaft extension:25±1mm

• End play:0.6-1.2mm

• Lead wire length:2-165±10mm

Packing Part

1. Package:With treasure nylon or paper,each layer of 20 electric motor,2 package desiccant, motor is a case of 40, treasure the nylon with a piece of cardboard/paper separated with two pieces of cardboard.

2. Carton requirement:Appearance is neat, clean and without damage

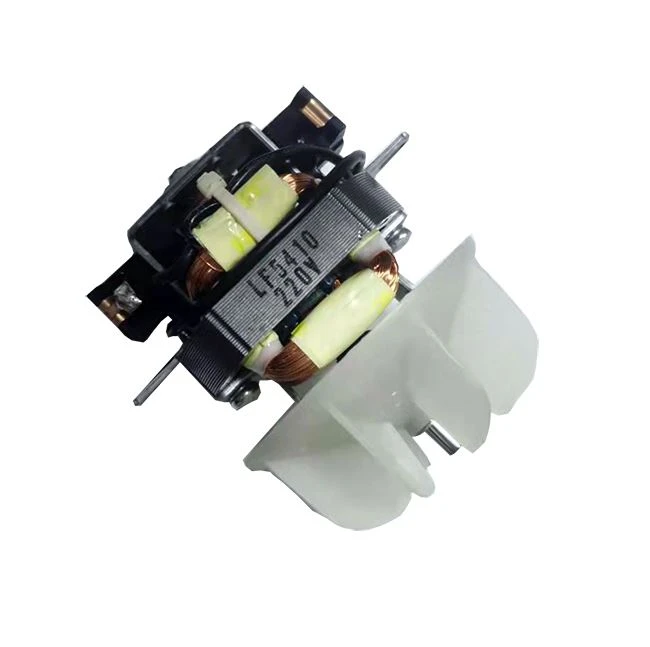

AC MOTOR Assembly picture
